¶ Air Filter

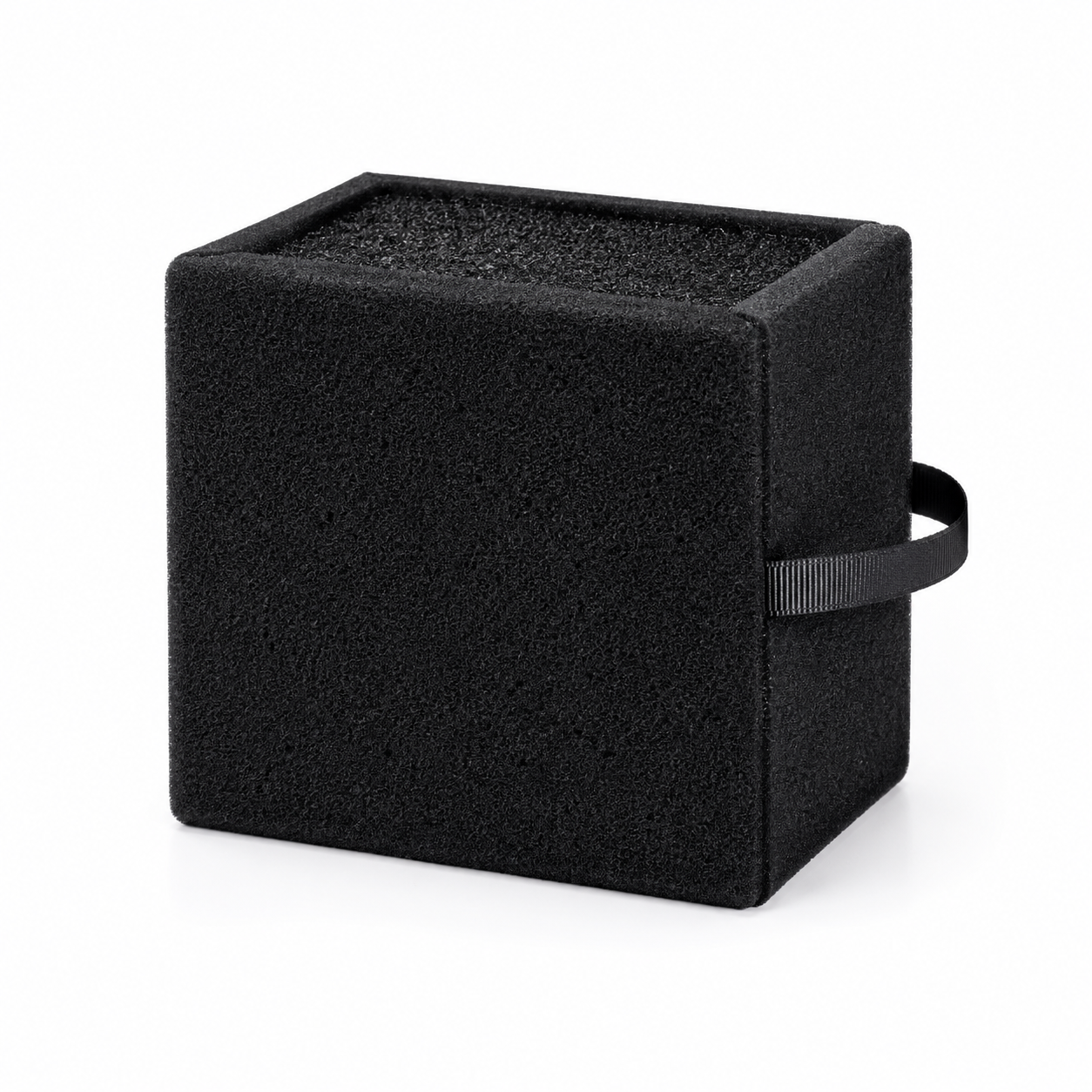

The Air Filter is a replaceable activated-carbon filter behind the printer’s right-side cover.
It uses HEPA filters and activated carbon to circulate and purify the air inside the chamber, helping to filter out particulate matter and odors.
Each one's Working Life: 360 hours cumulative printing time.
Actual service life varies based on environmental conditions, including temperature, and humidity, as well as usage patterns. We recommend replacing the Air Filter regularly.
¶ When to Replace
Replace the Air Filter when Morpho Studio shows 0%(Expired,replace now).
¶ Tools and Materials Required
- New Air Filter

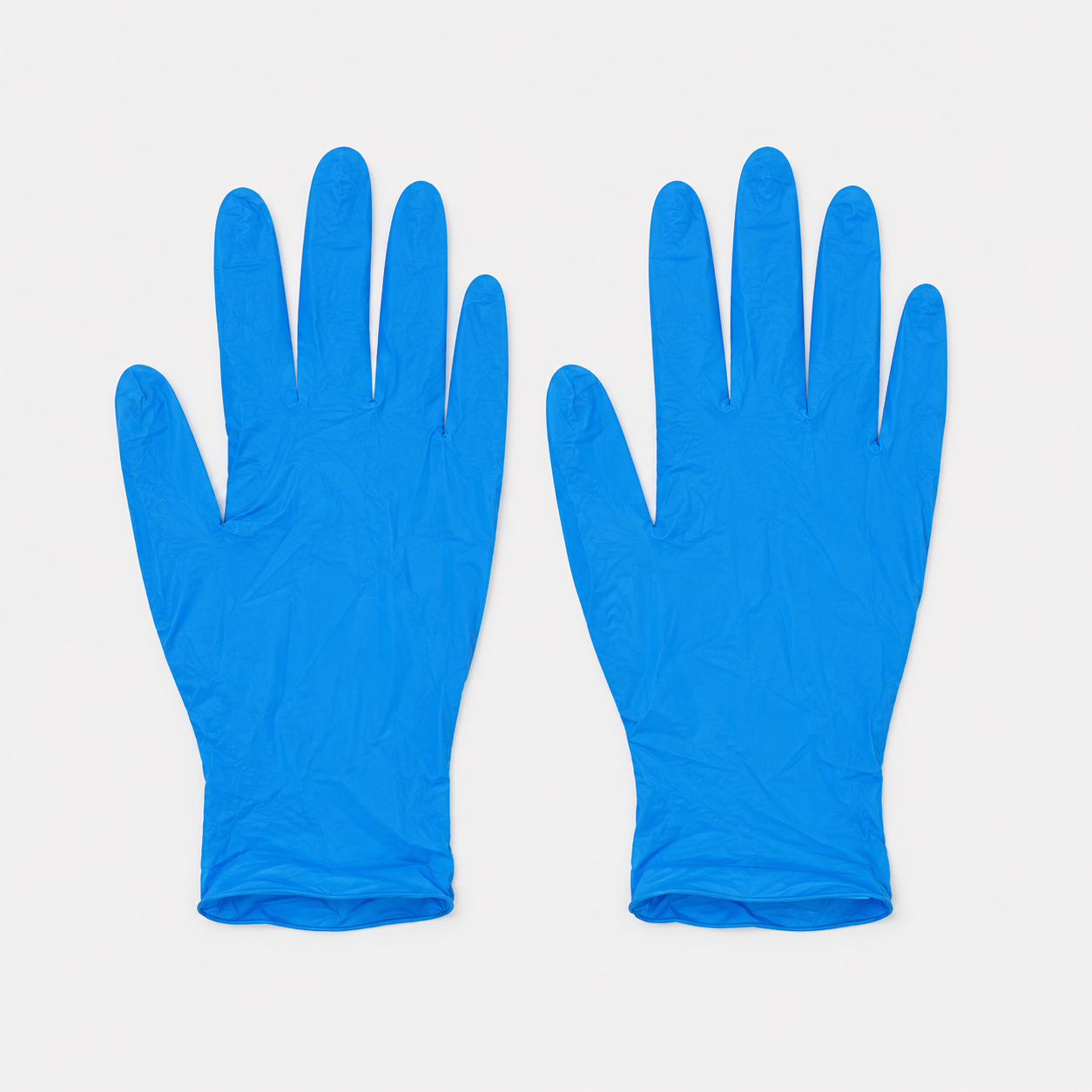

- Disposable Nitrile Gloves
¶ Video Guide
¶ Operation Guide
¶ Step 1: Locate the Expired Air Filter

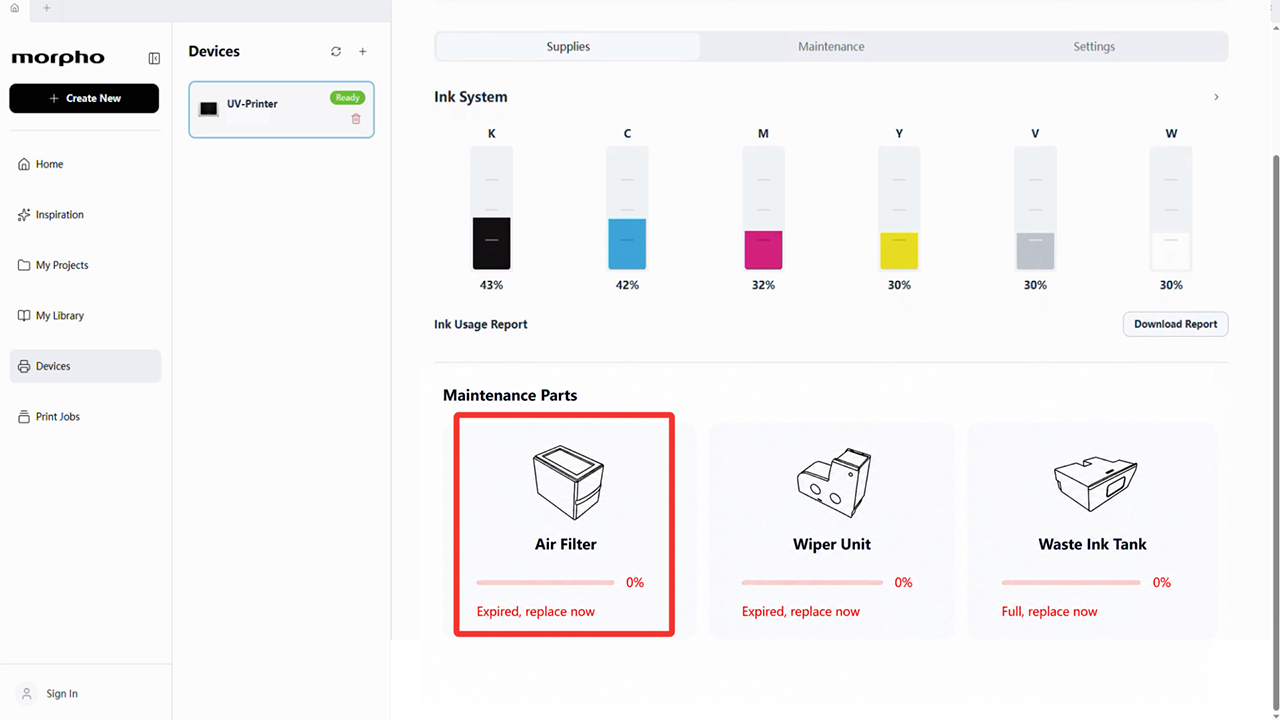

- Find Maintenance Parts in Morpho Studio.
- Confirm that the Air Filter status is 0%(Expired).
¶ Step 2: Remove the Expired Air Filter

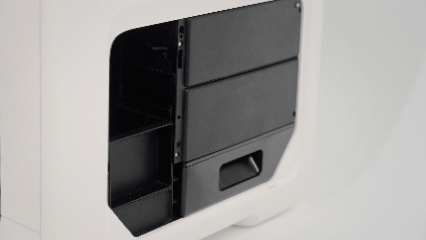

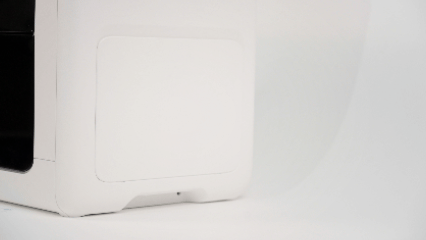

1.Hold the upper edge of the right-side cover and pull the cover away from the printer. Then grip the recessed handle on the Air Filter cover and pull the cover straight outward.

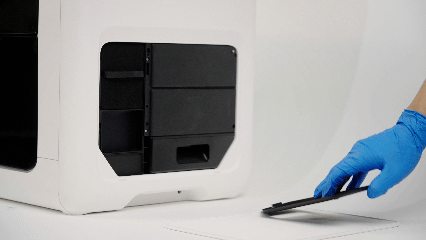

2.Gently pull on the expired Air Filter to remove it, wiggling it if necessary in various directions (up, down, left, right) to facilitate its removal.
¶ Step 3: Insert the New Air Filter
1.Insert the new air filter, ensuring it is fully inserted to allow the cover to close flush.
2.Reinstall the Air Filter cover, then reinstall the right-side cover. Press each cover into place until the cover sits flush with the surrounding panel.
¶ Functional Testing
After installation, the printer automatically detects the new Air Filter. Wait for the detection process to finish before verification.

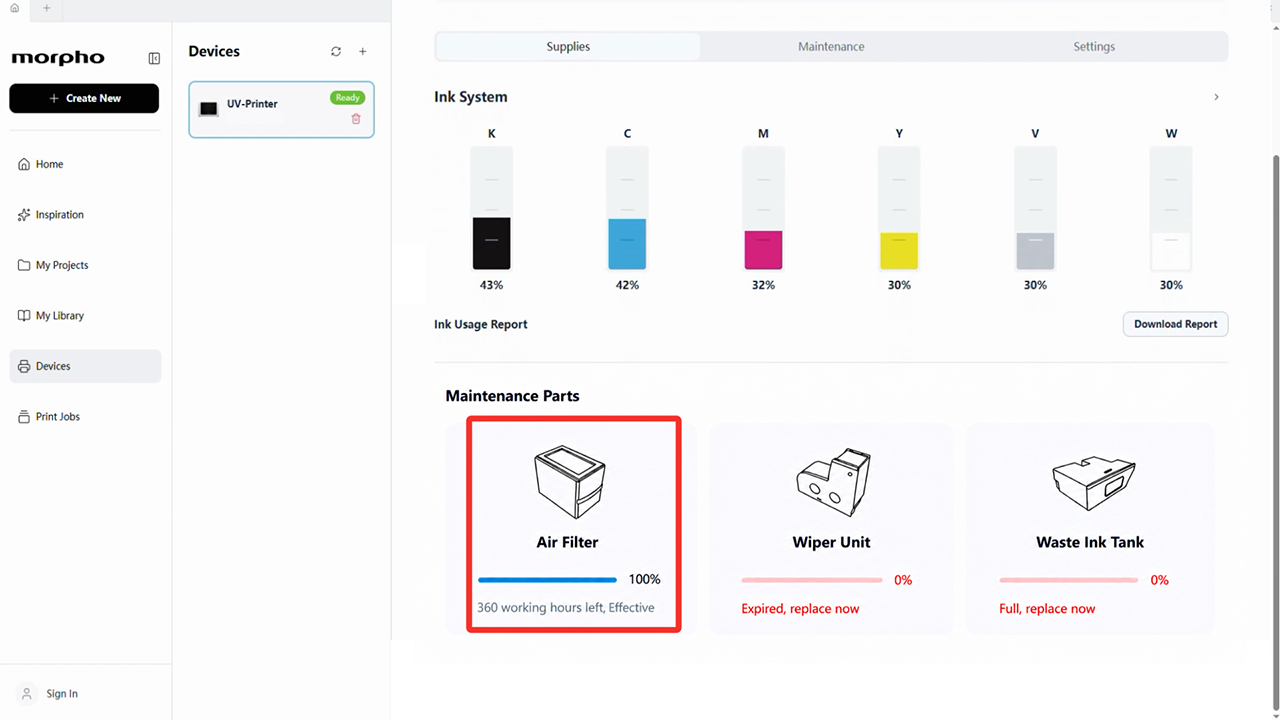

- Return to Maintenance Parts after the replacement process is complete.
- Confirm that the replacement Air Filter is recognized and its status has updated.
If the Air Filter status updates successfully, the replacement has been completed.If the Air Filter status does not update, remove and reinstall the Air Filter, then wait briefly for automatic detection.
If the issue persists, contact our technical support team for further assistance.
